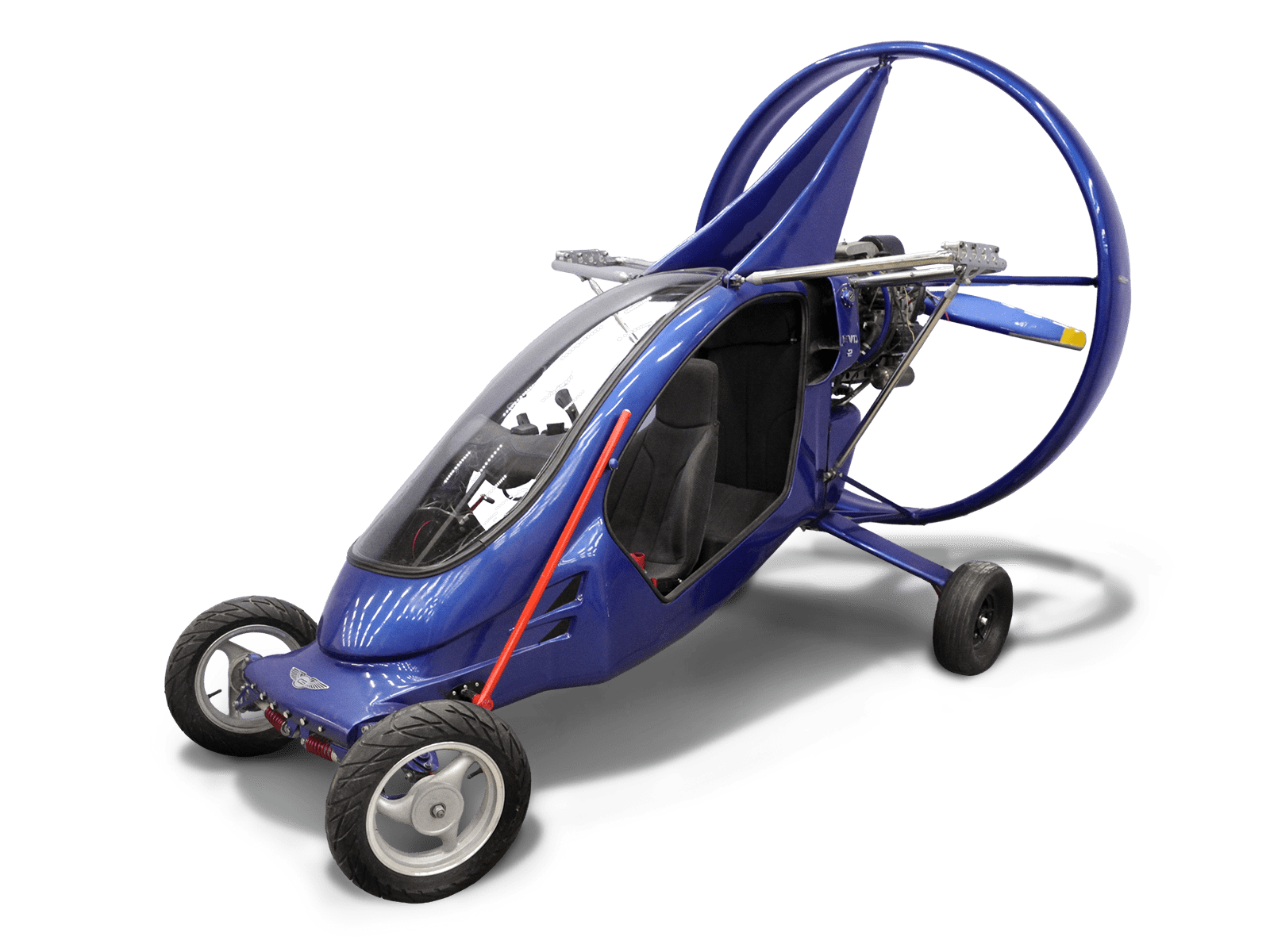

STALKER 2
Optionally manned and unmanned single-seat composite aircraft with electric wheel chassis. Its wings fold along the body or are removed, which allows the device to easily travel on the road. Aircraft without an airfield base — designed for use on unpaved sites and takeoff / landing from country roads.
Application range:
- Sports and training flights
- Travel
- Monitoring and reconnaissance
- Special operations.
Key Specs
| Category | Parameter | Value |
|---|---|---|
| General | Crew | 2 |
| Powerplant | Engine Power | 64-115 hp |
| Electric Motor (wheel) | 4 kWh | |
| Fuel Tank Capacity | 100 l | |
| Flight Performance | Cruising Speed | 160 km/h |
| Ground Speed | 40 km/h | |
| Flight Range | 800 km | |
| Rate of Climb | up to 5 m/s | |
| Maximum Flight Altitude | 4,200 m | |
| Take-off & Landing | Take-off Run | 350 m |
| Landing Roll | up to 150 m | |
| Dimensions | Length | 5.1 m |
| Height | 2.3 m | |
| Wingspan | 9.2 m | |
| Weights | Empty Weight | 260 kg |
| Max Take-off Weight | 580 kg |
Скорость
на земле (электроколеса) до 100 км/ч, в воздухе 70 км/ч
Дальность
по земле – 40 км,
в воздухе 240 км
Скороподъёмность
до 3 м/с
Высота полёта
до 3500 м
Двигатель
40 л/с
Электродвигатель (колеса)
3 кВт
Длина разбега и пробега
5 - 25 метров.
Габариты
Длина 2,4 м, высота 1,9 м, площадь крыла 36 м2
Масс (сухой вес)
85 кг
Макс. взлётная масса
270 кг
Полезная нагрузка
185 кг
Запас топлива
18 л
