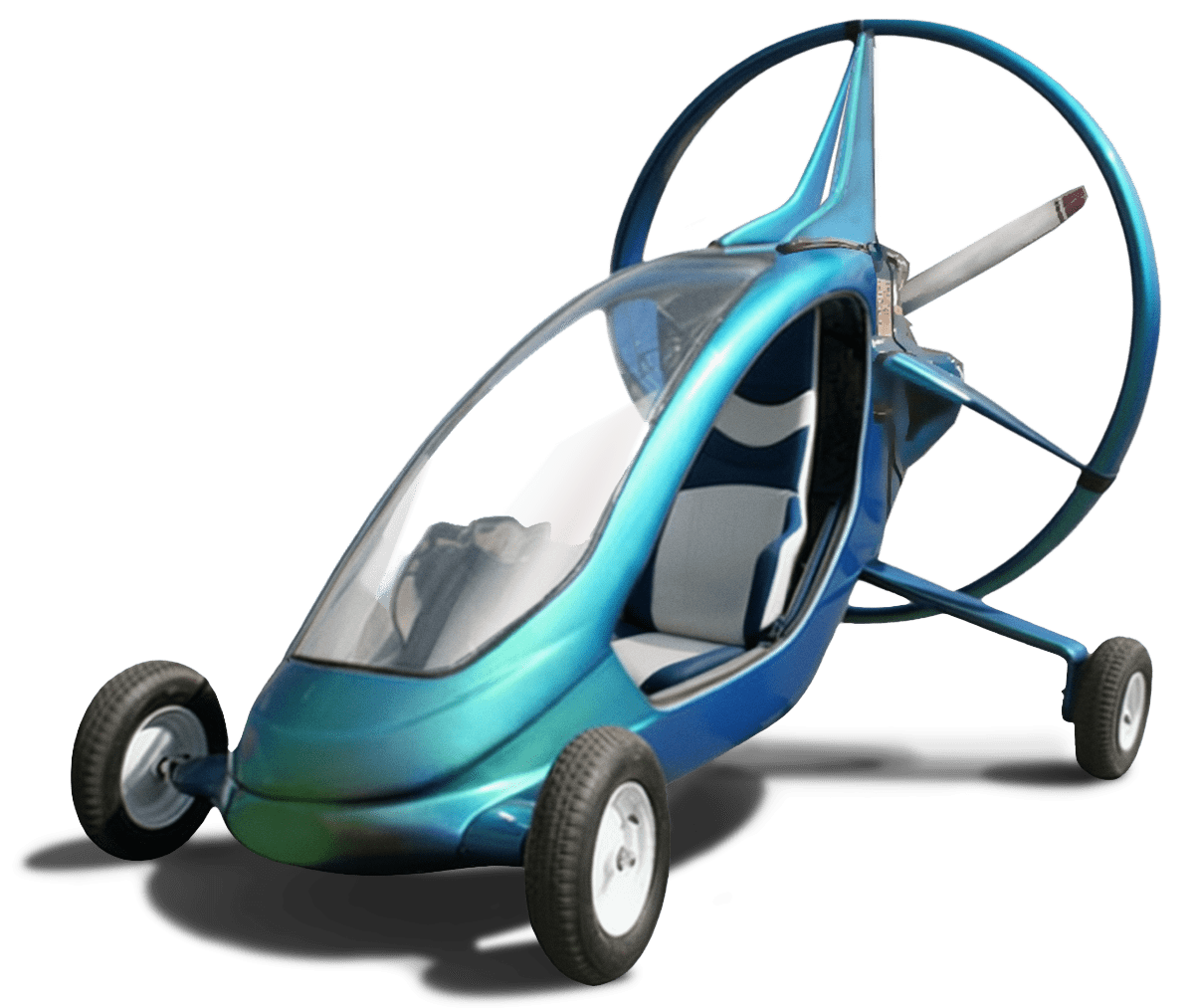

EVO 1
The Begalet has two modifications:
- In the form of a parachute — with manual control of the canopy in the air.
- In the form of an aerochute — with foot control of the canopy in the air.
The device is intended for:
- sports;
- pilot training;
- can be used for:
- patrolling;
- aerial photography of surveillance zones, fires, gas and power lines;
- for the needs of the Ministry of Emergency Situations.
Key Specs
| Category | Parameter | Value |
|---|---|---|
| General | Crew | 1 |
| Flight Performance | Cruising Speed | 65 km/h |
| Maximum Speed | 80 km/h | |
| Rate of Climb | up to 3 m/s | |
| Maximum Flight Altitude | 3,500 m | |
| Take-off & Landing | Take-off Run | 5-50 m |
| Landing Roll | up to 25 m | |
| Dimensions | Length | 2.4 m |
| Height | 1.9 m | |
| Wing Area | 36 m² | |
| Weights | Empty Weight | 75 kg |
| Max Take-off Weight | 270 kg | |
| Payload | 195 kg |
Speed
on the ground (electric wheels) up to 100 km/h, in the air 70 km/h
Range
by land – 40 km,
in the air 240 km
Rate of climb
up to 3 m/s
Flight altitude
up to 3500 m
Engine
40 l/s
Electric motor (wheels)
3 kW
Takeoff and run length
5 - 25 meters.
Dimensions
Length 2.4 m, height 1.9 m, wing area 36 m2
Mass (dry weight)
85 kg
Max. take-off weight
270 kg
Payload
185 kg
Fuel reserve
18 l
